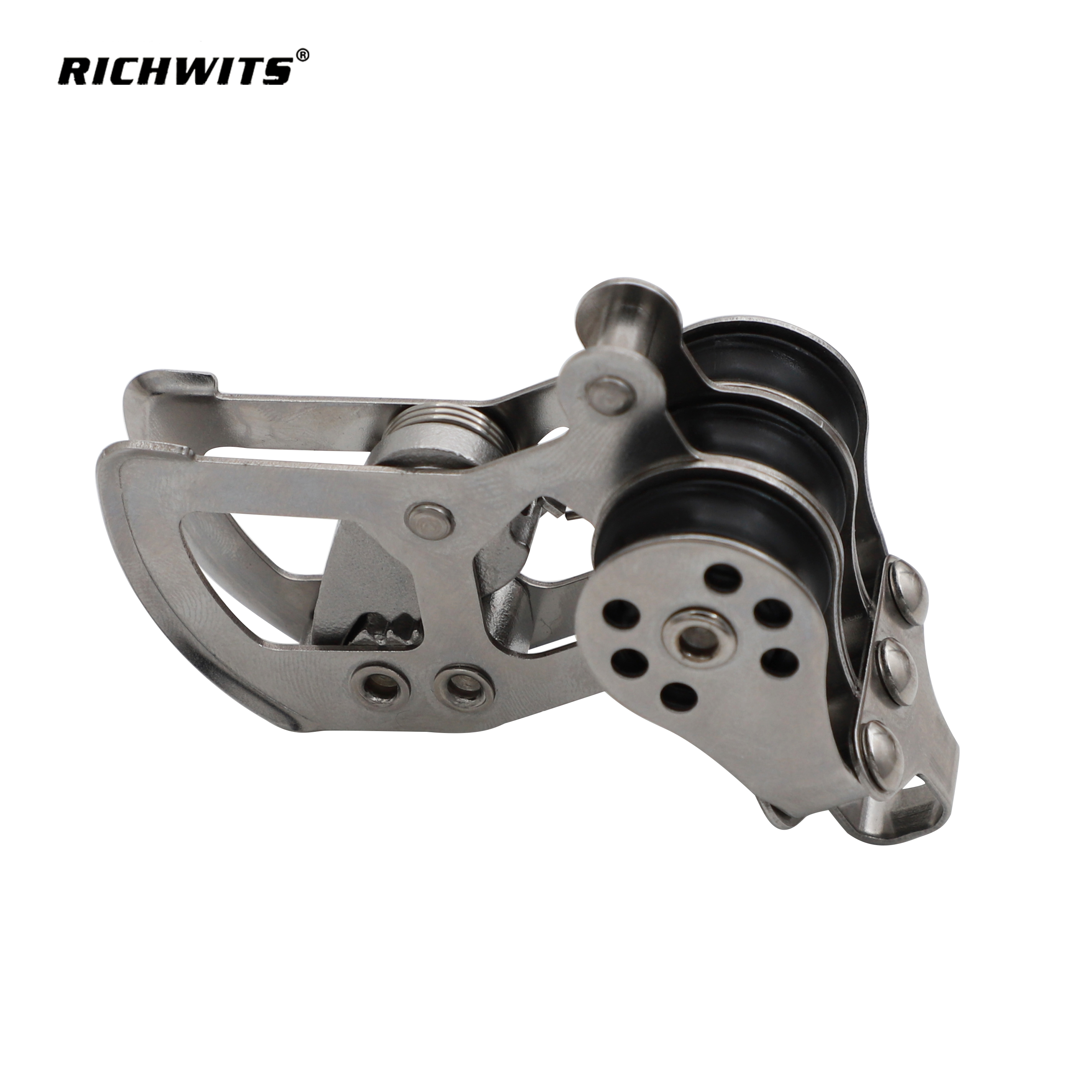

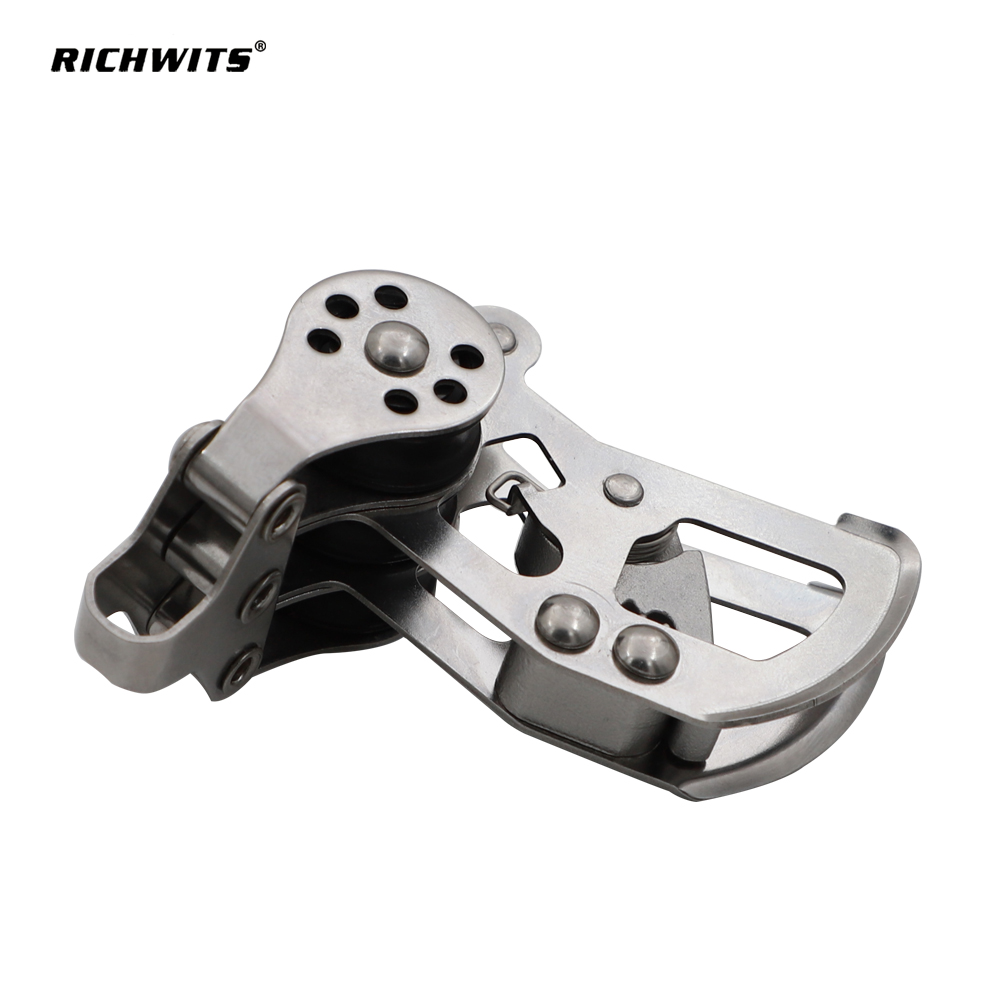

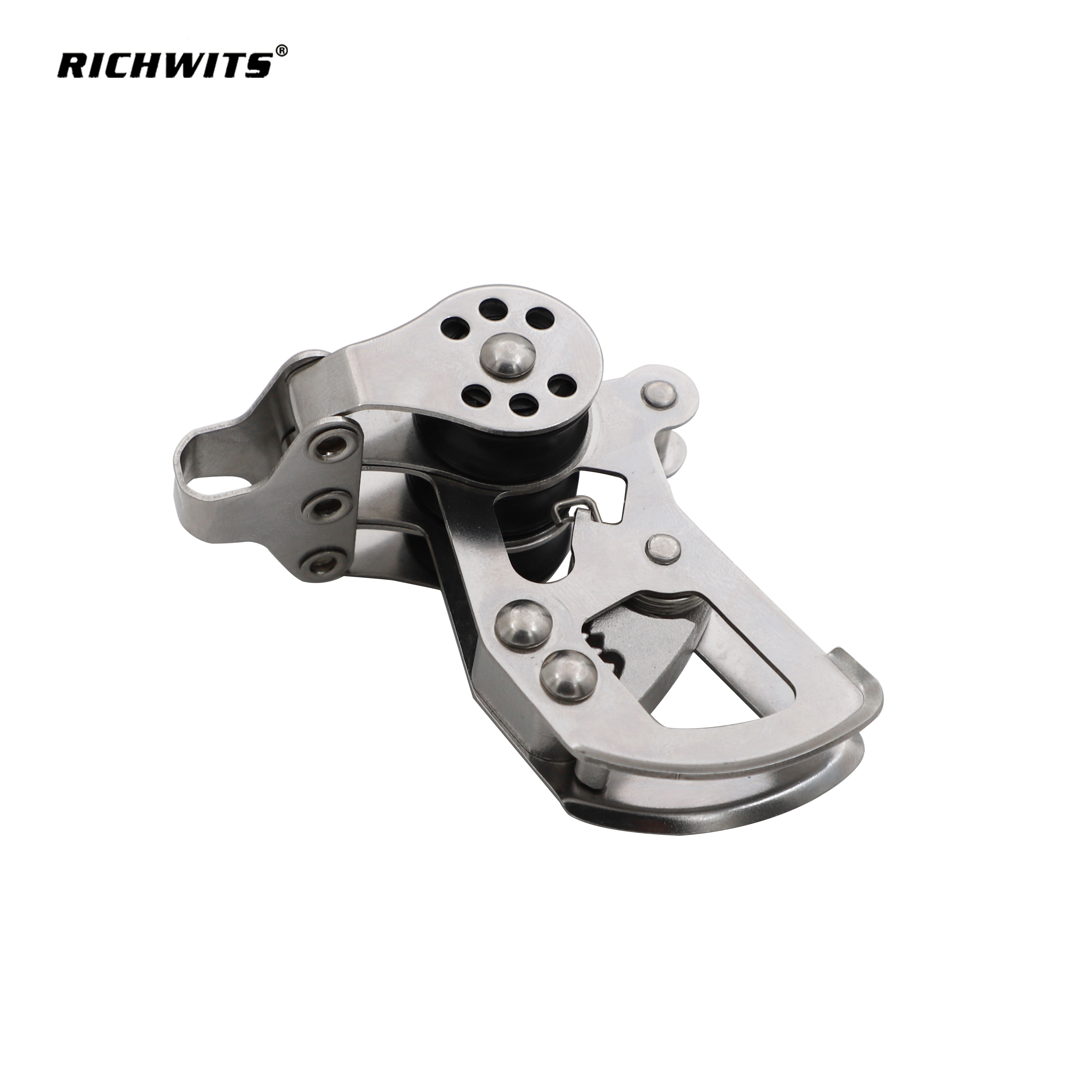

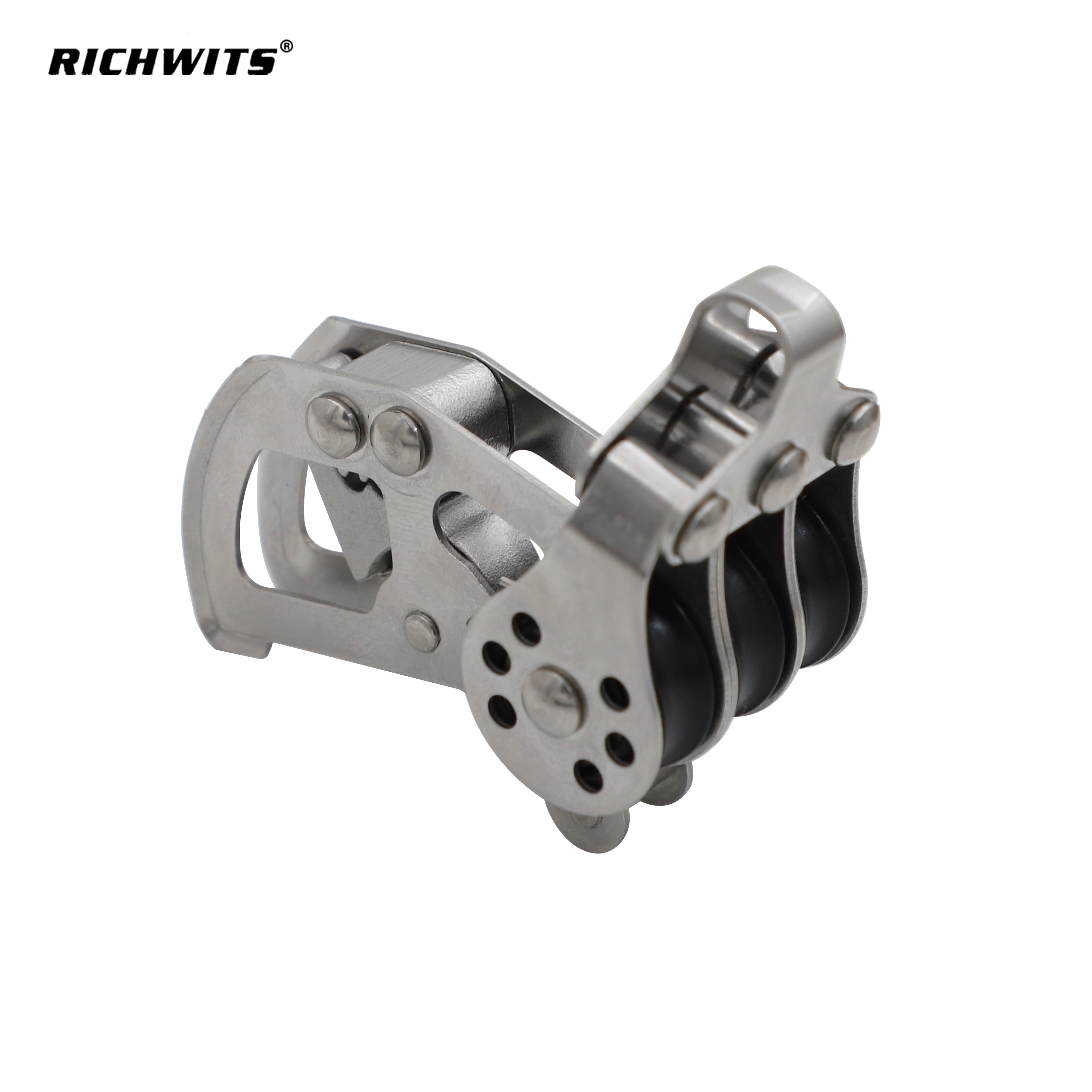

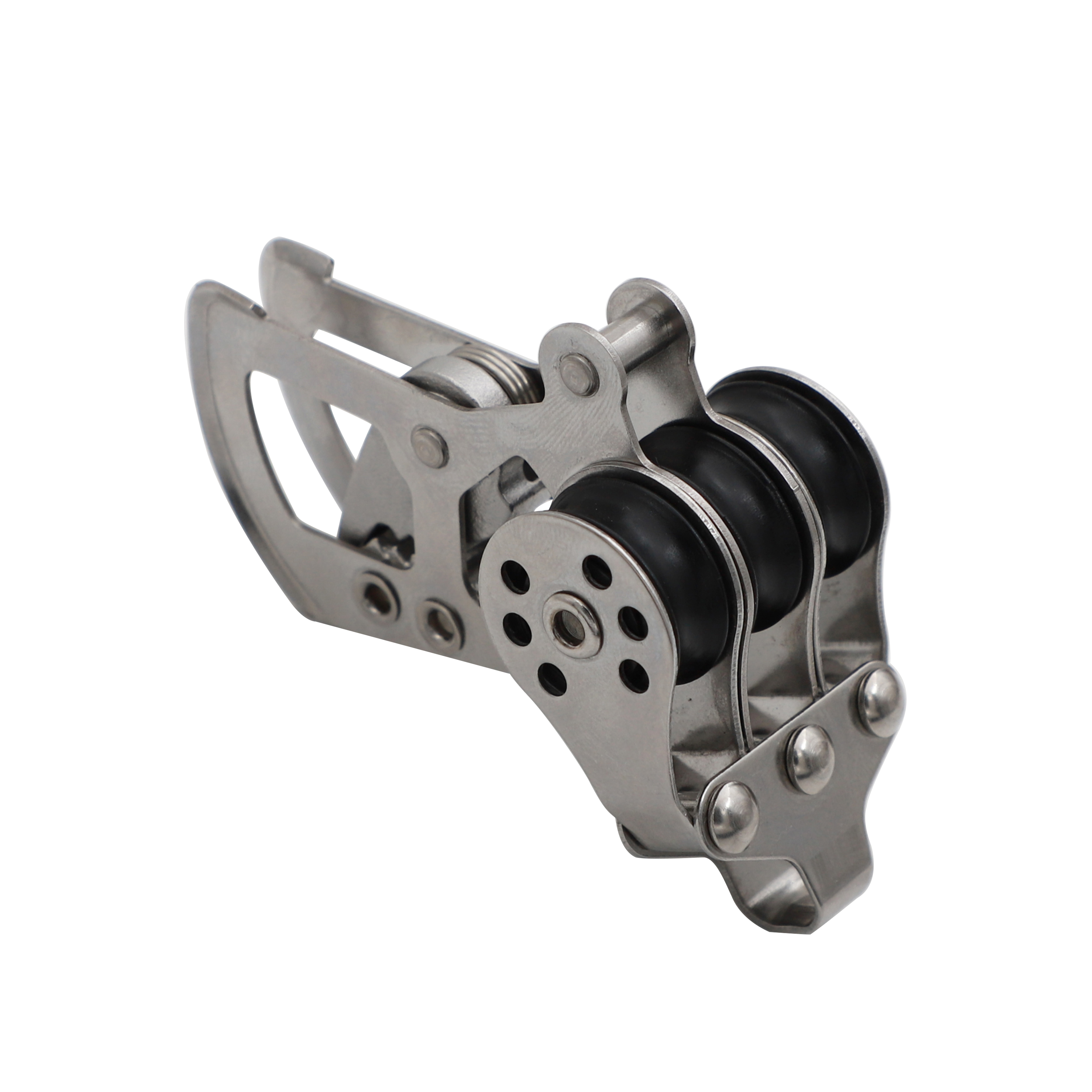

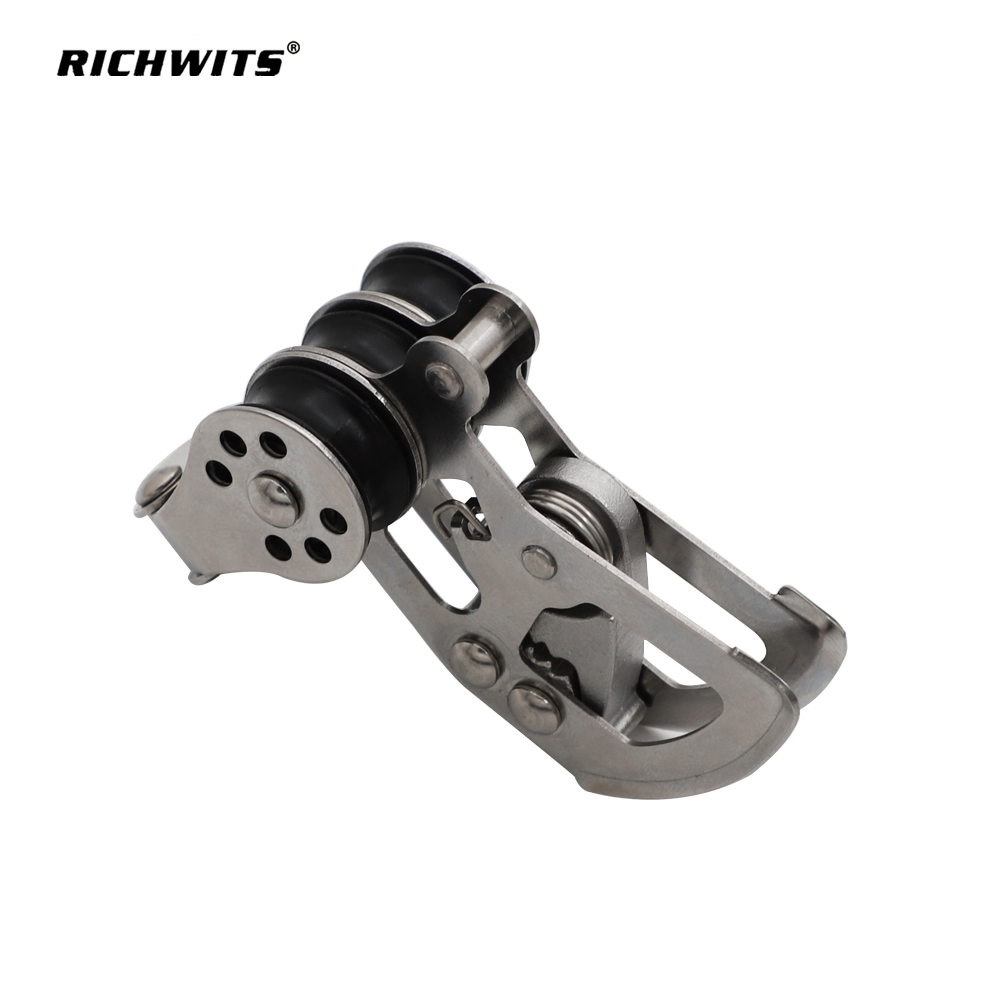

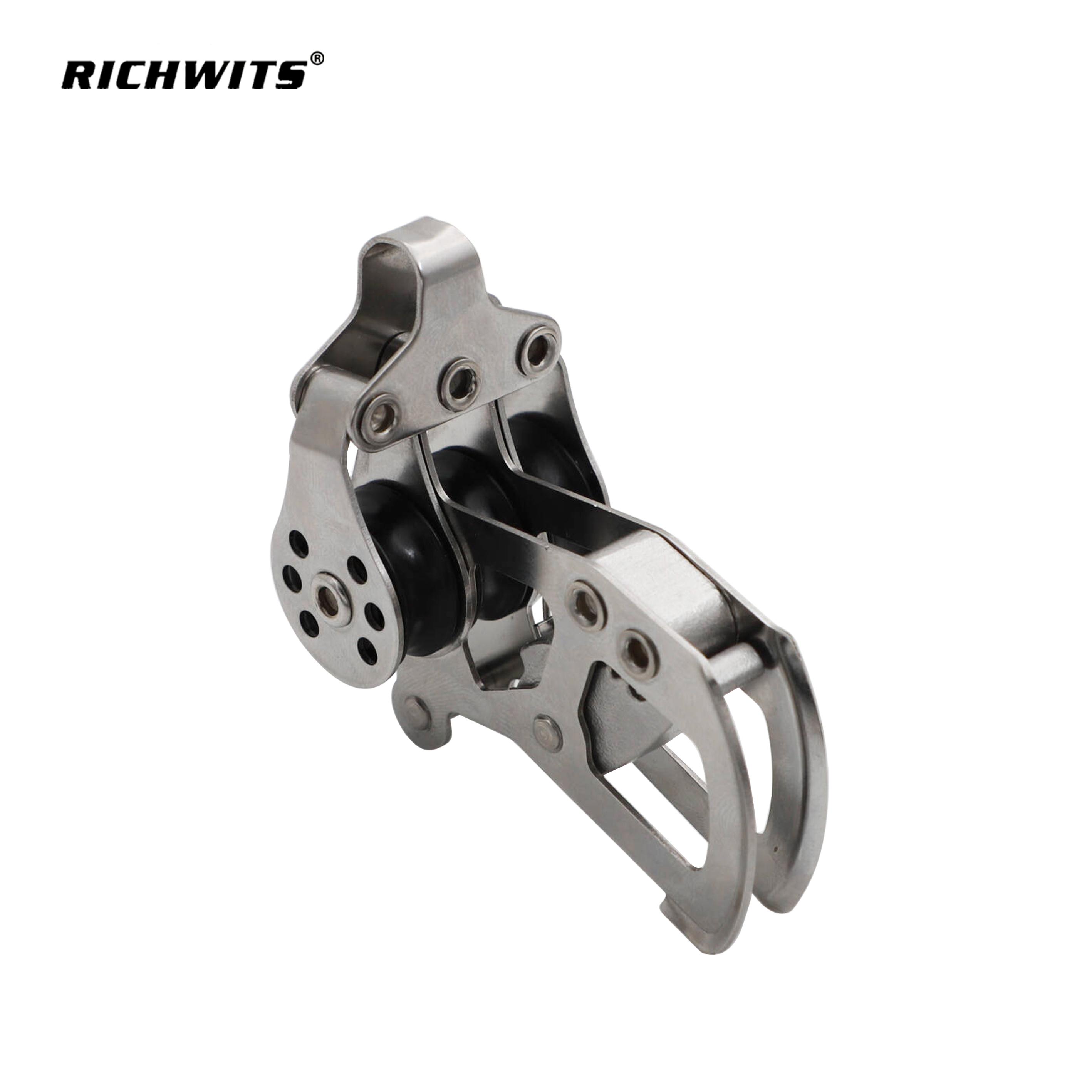

The RICHWITS Stainless Steel 316 Marine Pulley with Locking Ball Nylon Wheel is a high-performance rigging hardware solution engineered for marine lifting, rope guidance, and load management applications. As a core marine pulley product, it features precision-machined 316 stainless steel construction, a self-lubricating nylon sheave with integrated locking ball mechanism, and a robust side-plate design—far superior to standard aluminum or plastic pulleys. Suitable for yacht rigging, sailboat line management, dockside lifting, and industrial rope systems, this stainless steel marine pulley offers exceptional corrosion resistance, smooth rotation, and secure load locking capability, with customizable sizes and configurations to meet diverse operational needs.
Manufactured from solid 316 austenitic stainless steel (marine-grade), containing 2-3% molybdenum for enhanced resistance to saltwater pitting and crevice corrosion. Unlike 304 stainless steel or aluminum alternatives, this marine pulley withstands prolonged immersion in seawater, harsh UV exposure, and chemical contaminants without degradation. The investment-cast or CNC-machined body ensures uniform material density and eliminates weak points found in welded or stamped designs.
The high-density nylon pulley wheel features a precision-machined groove profile compatible with ropes from 6mm to 16mm diameter. Embedded stainless steel ball bearings ensure smooth, low-friction rotation under load, eliminating the need for regular greasing. The nylon material is inherently wear-resistant, quiet in operation, and gentle on synthetic ropes—preventing fiber abrasion that occurs with metal sheaves.
The innovative locking ball system allows instant load securing without additional hardware. When engaged, a spring-loaded 316 stainless steel ball wedges against the sheave groove, preventing rope slippage and maintaining tension. This feature is critical for sail reefing, anchor line management, and temporary load holding where traditional cleats or cam devices would add complexity. Disengagement requires minimal manual force for quick release.
Perfect for mainsheet systems, halyard guides, reefing lines, and boom vangs. The locking ball mechanism secures sail positions without constant line tensioning, while the 316 stainless steel construction endures salt spray and green water immersion. The low-friction nylon sheave preserves expensive Dyneema or polyester running rigging.
Ideal for mooring line management, fender adjustment systems, and small cargo lifting. The marine pulley allows smooth line guidance from bollards to cleats, while the locking feature temporarily secures fender positions during tide changes. WLL ratings accommodate typical dockside loads for vessels up to 40 feet.
Used in net lifting systems, longline deployment, and aquaculture cage management. The corrosion-resistant 316 body and self-lubricating design minimize maintenance in high-biofouling environments. The locking ball provides secure holding for trap lines and net retrieval systems.
What's the advantage of nylon sheave over all-metal pulleys?
Nylon sheaves offer three critical advantages: (1) Rope Preservation – the softer material prevents fiber crushing and abrasion, extending rope life by 40-60% compared to steel sheaves; (2) Quiet Operation – eliminates metal-on-metal squeaking and vibration; (3) Self-Lubricating – requires no grease maintenance that attracts salt and grit. For marine applications where rope replacement costs exceed hardware costs, nylon is the professional choice.
How does the locking ball mechanism work under load?
The spring-loaded 316 stainless steel ball sits in a radial bore intersecting the sheave groove. When the locking lever is engaged, the ball protrudes into the groove, creating a wedging action against the rope. Under tension, the rope presses the ball deeper into its seat, increasing locking force proportionally to load (self-energizing). Release requires compressing the spring against this wedge force—typically manageable up to 50% of WLL by hand, beyond which a tool-assisted release is recommended.
